  • WIDIA/KENNAMETAL VSM490D100Z03W075XN10 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 0.750

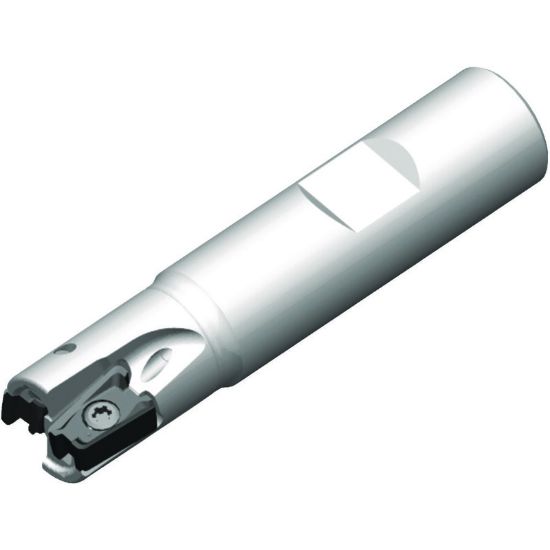

Picture of WIDIA/KENNAMETAL VSM490D100Z03W075XN10 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 0.750

WIDIA/KENNAMETAL VSM490D100Z03W075XN10 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 0.750

ANSI: VSM490D100Z03W075XN10

ISO: VSM490D100Z03W075XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425472
Delivery date: 3-5 days
$378.33

Features And Benefits

True 0° roughing tool with imbedded finishing capability all in one tool. Best-in-class wall finish at axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Reduced shanks available.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 10
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 3
Machine Side Connection Type Cylindrical
Length Of Cut 0.3940 10.01MM
Dimension Description 1.000 x 0.750 x 0.394 x 3.250
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.2500 82.55MM
Cutting & Machining Properties
Insert Style XN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
