  • WIDIA/KENNAMETAL VSM490D100Z03C100XN10L670 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

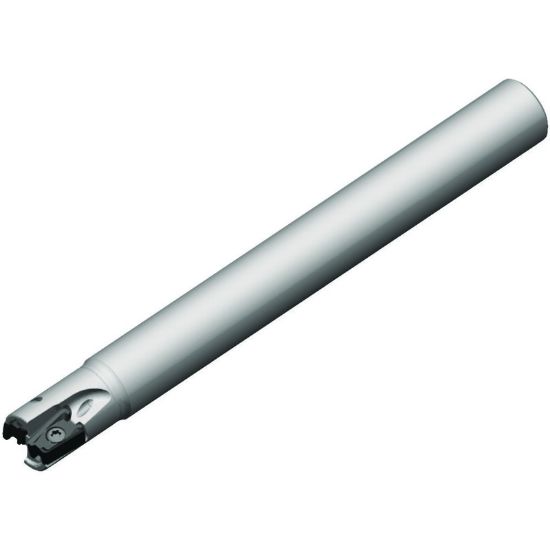

Picture of WIDIA/KENNAMETAL VSM490D100Z03C100XN10L670 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

WIDIA/KENNAMETAL VSM490D100Z03C100XN10L670 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

ANSI: VSM490D100Z03C100XN10L670

ISO: VSM490D100Z03C100XN10L670

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425446
Delivery date: 3-5 days
$397.21

Features And Benefits

Productivity booster up to 525in3/min (8600cm3/min MRR at machining Aluminum components. Only one cutter body style to load insert with nose radii from .008" (0.2mm) up to .236" (6mm). Consistant axial gage length with insert nose radii from .008" (0.2mm) up to .236" (6mm). Best in class solution for thin-walled and stepping down machining.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Shipping State Pennsylvania
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Length Of Cut 0.3940 10.01MM
Cutter Dia 1.0000 25.40MM
Dimension Description 1.000 x 1.000 x 0.394 x 6.700
Machine Side Connection Type Cylindrical
Insert Size Ic 10
Overall Len 6.7000 170.18MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style XN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
