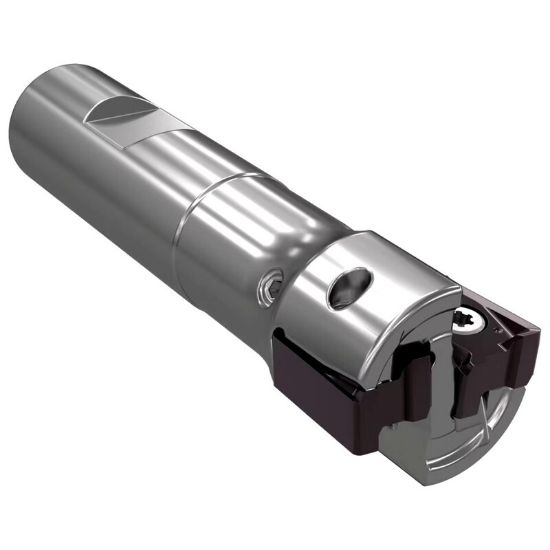

Picture of WIDIA/KENNAMETAL VSM490D100Z02W100XN15 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

WIDIA/KENNAMETAL VSM490D100Z02W100XN15 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

ANSI: VSM490D100Z02W100XN15

ISO: VSM490D100Z02W100XN15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5710590
Delivery date: 3-5 days
$338.81

Features And Benefits

Superior wall and surface finish capabilities. “Stepless” solution. True 0° to run preciseapplications in multiple axial passes. Strong concept to run up to .590 (15mm) depth of cut. Effective internal coolant feature, reaching the cutting edge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Insert Type Negative
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Insert Size Ic 15
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Overall Len 4.0300 102.36MM
Length Of Cut 0.5910 15.01MM
Flutes/Inserts 2
Dimension Description 1.000 x 1.000 x 0.591 x 4.030
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Insert Style XN
Coolant Thru Yes
