  • WIDIA/KENNAMETAL VSM490D100Z02W075XN15 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 0.750

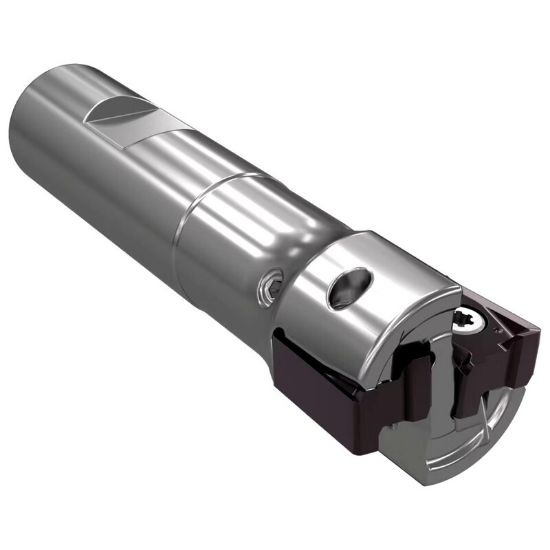

Picture of WIDIA/KENNAMETAL VSM490D100Z02W075XN15 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 0.750

WIDIA/KENNAMETAL VSM490D100Z02W075XN15 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 0.750

ANSI: VSM490D100Z02W075XN15

ISO: VSM490D100Z02W075XN15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5873069
Delivery date: 3-5 days
$345.41

Features And Benefits

Superior wall and surface finish capabilities. “Stepless” solution. True 0° to run preciseapplications in multiple axial passes. Strong concept to run up to .590 (15mm) depth of cut. Effective internal coolant feature, reaching the cutting edge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling, Side Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Insert Size Ic 15
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Cylindrical
Dimension Description 1.000 x 0.750 x 0.591 x 3.780
Overall Len 3.7800 96.01MM
Length Of Cut 0.5910 15.01MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style XN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
