  • WIDIA/KENNAMETAL VSM490D100Z02C100XN15L800 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

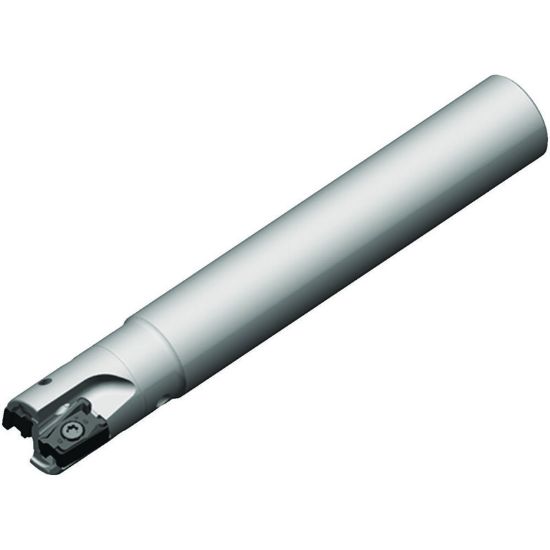

Picture of WIDIA/KENNAMETAL VSM490D100Z02C100XN15L800 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

WIDIA/KENNAMETAL VSM490D100Z02C100XN15L800 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

ANSI: VSM490D100Z02C100XN15L800

ISO: VSM490D100Z02C100XN15L800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5873101
Delivery date: 3-5 days
$332.04

Features And Benefits

Superior wall and surface finish capabilities. “Stepless” solution. True 0° to run preciseapplications in multiple axial passes. Strong concept to run up to .590 (15mm) depth of cut. Effective internal coolant feature, reaching the cutting edge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Shipping State Pennsylvania
Application Face Milling, Side Milling
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Overall Len 8.0000 203.20MM
Length Of Cut 0.6102 15.50MM
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Dimension Description 1.000 x 1.000 x 0.610 x 8.000
Insert Size Ic 15
Flutes/Inserts 2
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
