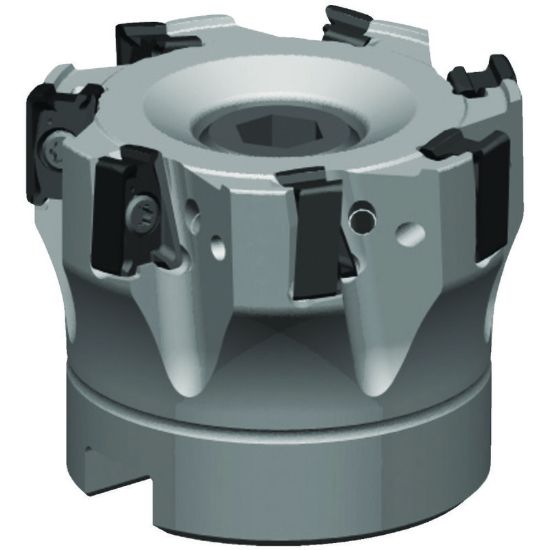

Picture of WIDIA/KENNAMETAL VSM490D080Z08S27XN10 90.0° Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL VSM490D080Z08S27XN10 90.0° Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

ANSI: VSM490D080Z08S27XN10

ISO: VSM490D080Z08S27XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425484
Delivery date: 3-5 days
$666.23

Features And Benefits

True 90° roughing tool with embedded finishing capabilities all in one tool. Best-in-class wall finish in axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Coarse, medium, and fine pitch cutter density available. Cutters following Japanese Industry Standard (JIS) are available.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Side Milling, Ramp Milling, Slot Milling
Package Size 1
Shipping State Pennsylvania
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 8
Insert Size Ic 10
Overall Len 1.9680 49.99MM
Length Of Cut 0.3940 10.01MM
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Cutting & Machining Properties
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Hand R/L Right
