  • WIDIA/KENNAMETAL VSM490D075Z03W075XN10 90.0° Milling Cutter 0.750 Cutter Diameter Cylindrical 0.750

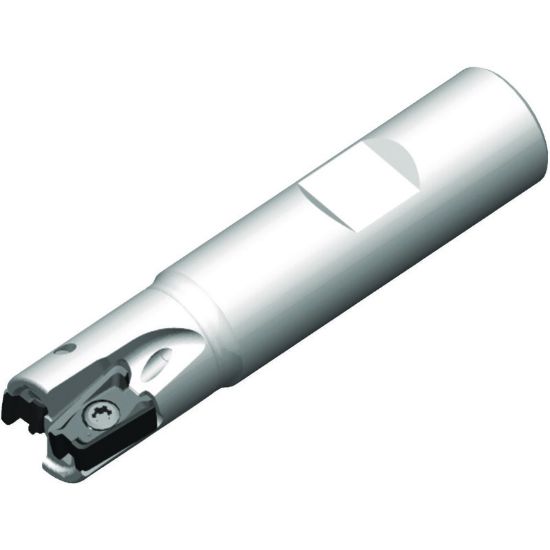

Picture of WIDIA/KENNAMETAL VSM490D075Z03W075XN10 90.0° Milling Cutter 0.750 Cutter Diameter Cylindrical 0.750

WIDIA/KENNAMETAL VSM490D075Z03W075XN10 90.0° Milling Cutter 0.750 Cutter Diameter Cylindrical 0.750

ANSI: VSM490D075Z03W075XN10

ISO: VSM490D075Z03W075XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425471
Delivery date: 3-5 days
$350.85

Features And Benefits

True 0° roughing tool with imbedded finishing capability all in one tool. Best-in-class wall finish at axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Reduced shanks available.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Made In USA No
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Type Negative
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 10
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Dimension Description 0.750 x 0.750 x 0.394 x 3.250
Overall Len 3.2500 82.55MM
Flutes/Inserts 3
Length Of Cut 0.3940 10.01MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Insert Style XN
