  • WIDIA/KENNAMETAL VSM490D062Z02W062XN10 90.0° Milling Cutter 0.625 Cutter Diameter Cylindrical 0.625

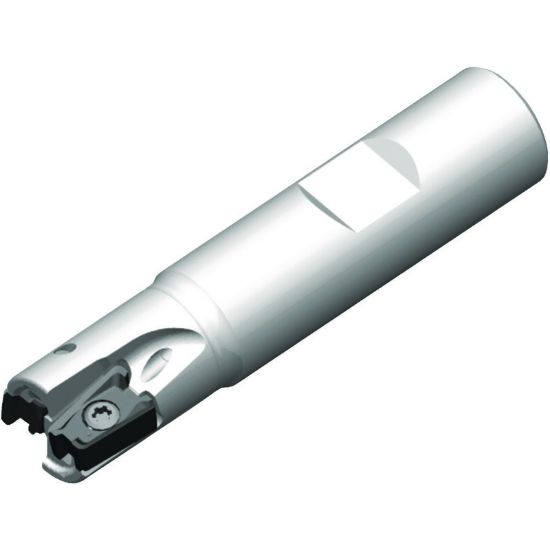

Picture of WIDIA/KENNAMETAL VSM490D062Z02W062XN10 90.0° Milling Cutter 0.625 Cutter Diameter Cylindrical 0.625

WIDIA/KENNAMETAL VSM490D062Z02W062XN10 90.0° Milling Cutter 0.625 Cutter Diameter Cylindrical 0.625

ANSI: VSM490D062Z02W062XN10

ISO: VSM490D062Z02W062XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425459
Delivery date: 3-5 days
$275.87

Features And Benefits

True 0° roughing tool with imbedded finishing capability all in one tool. Best-in-class wall finish at axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Reduced shanks available.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Dimension Description 0.625 x 0.625 x 0.394 x 2.750
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Type Cylindrical
Length Of Cut 0.3940 10.01MM
Tool Material Steel
Insert Size Ic 10
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 2.7500 69.85MM
Flutes/Inserts 2
Cutting & Machining Properties
Hand R/L Right
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
