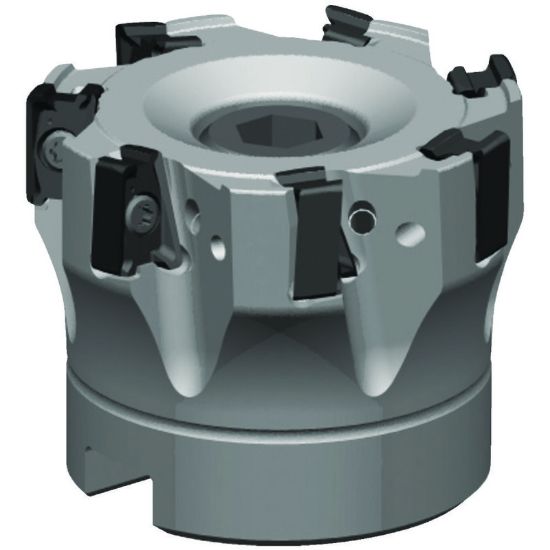

Picture of WIDIA/KENNAMETAL VSM490D050Z07S22XN10 90.0° Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL VSM490D050Z07S22XN10 90.0° Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

ANSI: VSM490D050Z07S22XN10

ISO: VSM490D050Z07S22XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425438
Delivery date: 3-5 days
$545.45

Features And Benefits

True 90° roughing tool with embedded finishing capabilities all in one tool. Best-in-class wall finish in axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Coarse, medium, and fine pitch cutter density available. Cutters following Japanese Industry Standard (JIS) are available.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Slot Milling, Face Milling
Shipping State Pennsylvania
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Cutter Dia 1.9690 50.01MM
Length Of Cut 0.3940 10.01MM
Tool Material Steel
Overall Len 1.5750 40.01MM
Insert Size Ic 10
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 7
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Insert Style XN
Hand R/L Right
