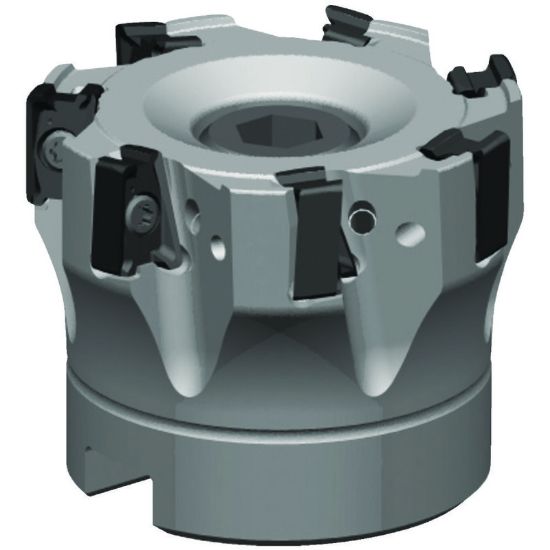

Picture of WIDIA/KENNAMETAL VSM490D040Z07S16XN10 90.0° Milling Cutter 1.575 Cutter Diameter Face Mill 0.629

WIDIA/KENNAMETAL VSM490D040Z07S16XN10 90.0° Milling Cutter 1.575 Cutter Diameter Face Mill 0.629

ANSI: VSM490D040Z07S16XN10

ISO: VSM490D040Z07S16XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425436
Delivery date: 3-5 days
$477.93

Features And Benefits

True 90° roughing tool with embedded finishing capabilities all in one tool. Best-in-class wall finish in axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Coarse, medium, and fine pitch cutter density available. Cutters following Japanese Industry Standard (JIS) are available.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Application Ramp Milling, Slot Milling, Side Milling, Face Milling, Pocket Milling
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 10
Tool Material Steel
Overall Len 1.5750 40.01MM
Machine Side Connection Size 0.6299 16.00MM
Flutes/Inserts 7
Length Of Cut 0.3940 10.01MM
Cutter Dia 1.5750 40.01MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Insert Style XN
