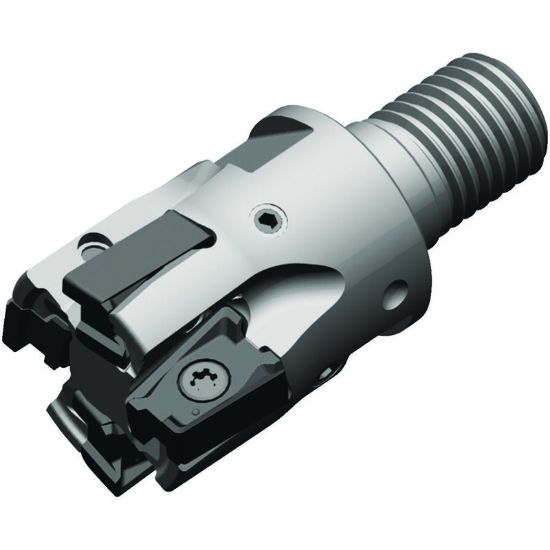

Picture of WIDIA/KENNAMETAL VSM490D035Z04M16XN15 90.0° Milling Cutter 1.378 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL VSM490D035Z04M16XN15 90.0° Milling Cutter 1.378 Cutter Diameter Screw On M16

ANSI: VSM490D035Z04M16XN15

ISO: VSM490D035Z04M16XN15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5873214
Delivery date: 3-5 days
$378.08

Features And Benefits

Superior wall and surface finish capabilities. “Stepless” solution. True 90° to run preciseapplications in multiple axial passes. Strong concept to run up to 15mm (.590) depth of cut. Effective internal coolant feature, reaching the cuttingedge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Application Face Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Cutter Dia 1.3780 35.00MM
Tool Material Steel
Machine Side Connection Type Screw On
Overall Len 2.5390 64.49MM
Machine Side Connection Size M16
Length Of Cut 0.5910 15.01MM
Insert Size Ic 15
Flutes/Inserts 4
Cutting & Machining Properties
Insert Style XN
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
