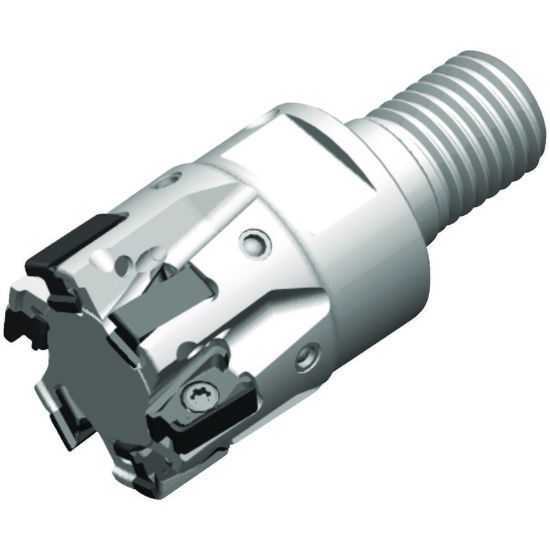

Picture of WIDIA/KENNAMETAL VSM490D032Z06M16XN10 90.0° Milling Cutter 1.260 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL VSM490D032Z06M16XN10 90.0° Milling Cutter 1.260 Cutter Diameter Screw On M16

ANSI: VSM490D032Z06M16XN10

ISO: VSM490D032Z06M16XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425557
Delivery date: 3-5 days
$396.65

Features And Benefits

True 90° roughing tool with embedded finishing capabilities all in one tool. Best-in-class wall finish in axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Reduced shanks available.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert Type Negative
Shipping State Pennsylvania
Package Size 1
Made In USA No
Dimensional Specifications
Flutes/Inserts 6
Insert Size Ic 10
Cutter Dia 1.2600 32.00MM
Machine Side Connection Size M16
Machine Side Connection Type Screw On
Overall Len 2.5390 64.49MM
Length Of Cut 0.3940 10.01MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
