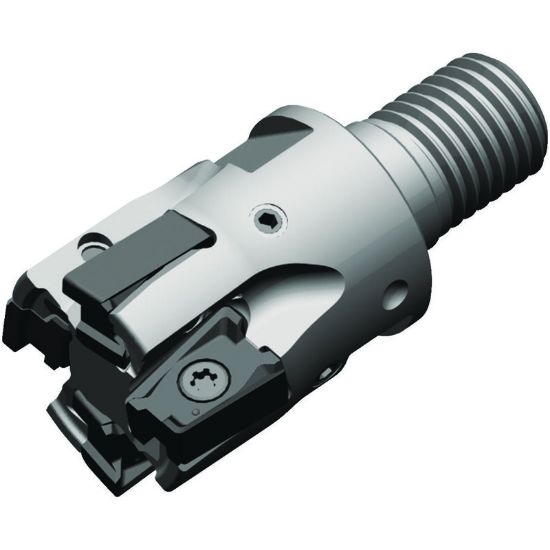

Picture of WIDIA/KENNAMETAL VSM490D032Z04M16XN15 90.0° Milling Cutter 1.260 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL VSM490D032Z04M16XN15 90.0° Milling Cutter 1.260 Cutter Diameter Screw On M16

ANSI: VSM490D032Z04M16XN15

ISO: VSM490D032Z04M16XN15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5873213
Delivery date: 3-5 days
$378.08

Features And Benefits

Superior wall and surface finish capabilities. "Stepless” solution. True 90° to run precise applications in multiple axial passes. Strong concept to run up to 15mm (.590) depth of cut. Effective internal coolant feature, reaching the cutting edge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Application Side Milling, Face Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Type Screw On
Overall Len 2.5390 64.49MM
Tool Material Steel
Cutter Dia 1.2600 32.00MM
Machine Side Connection Size M16
Insert Size Ic 15
Flutes/Inserts 4
Length Of Cut 0.5910 15.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Insert Style XN
Hand R/L Right
