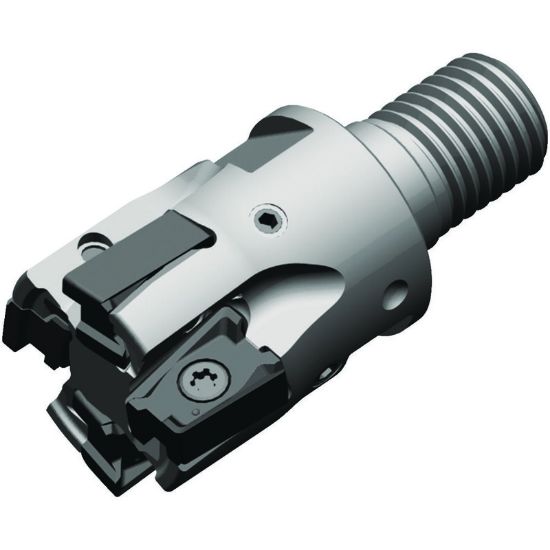

Picture of WIDIA/KENNAMETAL VSM490D032Z03M16XN15 90.0° Milling Cutter 1.260 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL VSM490D032Z03M16XN15 90.0° Milling Cutter 1.260 Cutter Diameter Screw On M16

ANSI: VSM490D032Z03M16XN15

ISO: VSM490D032Z03M16XN15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5873212
Delivery date: 3-5 days
$341.99

Features And Benefits

Superior wall and surface finish capabilities. "Stepless” solution. True 90° to run precise applications in multiple axial passes. Strong concept to run up to 15mm (.590) depth of cut. Effective internal coolant feature, reaching the cutting edge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Application Face Milling, Side Milling
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Cutter Dia 1.2600 32.00MM
Machine Side Connection Size M16
Machine Side Connection Type Screw On
Length Of Cut 0.5910 15.01MM
Insert Size Ic 15
Overall Len 2.5390 64.49MM
Flutes/Inserts 3
Tool Material Steel
Cutting & Machining Properties
Insert Style XN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
