  • WIDIA/KENNAMETAL VSM490D032Z03A32XN15L200 90.0° Milling Cutter 1.260 Cutter Diameter Cylindrical 1.259

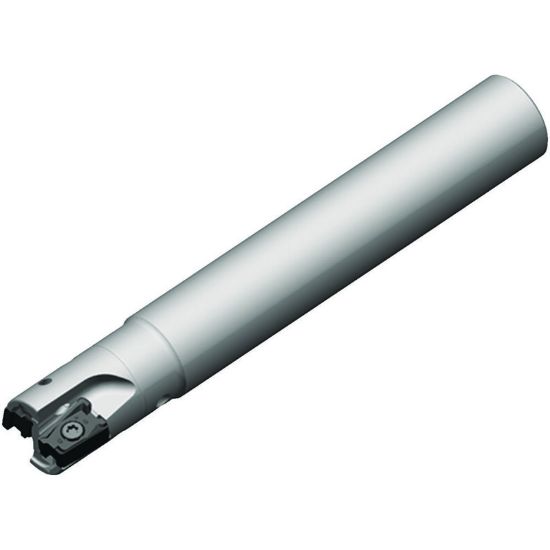

Picture of WIDIA/KENNAMETAL VSM490D032Z03A32XN15L200 90.0° Milling Cutter 1.260 Cutter Diameter Cylindrical 1.259

WIDIA/KENNAMETAL VSM490D032Z03A32XN15L200 90.0° Milling Cutter 1.260 Cutter Diameter Cylindrical 1.259

ANSI: VSM490D032Z03A32XN15L200

ISO: VSM490D032Z03A32XN15L200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5710288
Delivery date: 3-5 days
$442.72

Features And Benefits

Superior wall and surface finish capabilities. “Stepless” solution. True 90° to run preciseapplications in multiple axial passes. Strong concept to run up to 15mm (.590) depth of cut. Effective internal coolant feature, reaching the cuttingedge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Application Face Milling, Side Milling
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Dimension Description 1.260 x 1.260 x 0.591 x 7.874
Overall Len 7.8740 200.00MM
Machine Side Connection Type Cylindrical
Length Of Cut 0.5910 15.01MM
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 3
Cutter Dia 1.2600 32.00MM
Insert Size Ic 15
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Insert Style XN
