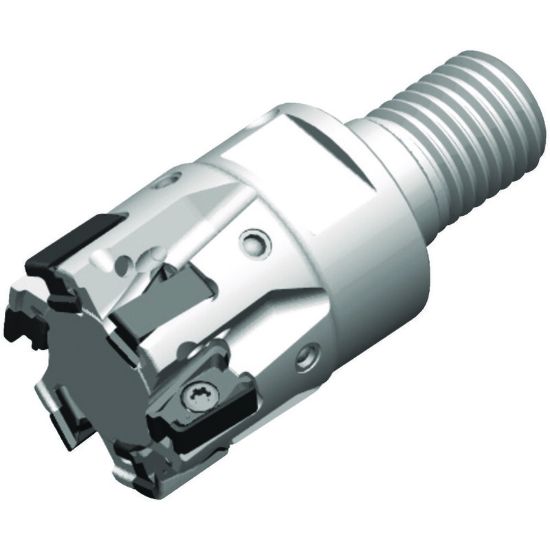

Picture of WIDIA/KENNAMETAL VSM490D025Z04M12XN10 90.0° Milling Cutter 0.984 Cutter Diameter Screw On M12

WIDIA/KENNAMETAL VSM490D025Z04M12XN10 90.0° Milling Cutter 0.984 Cutter Diameter Screw On M12

ANSI: VSM490D025Z04M12XN10

ISO: VSM490D025Z04M12XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425555
Delivery date: 3-5 days
$338.81

Features And Benefits

True 90° roughing tool with embedded finishing capabilities all in one tool. Best-in-class wall finish in axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. D32 productivity booster with Z6 effective for HPC cutting.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 10
Overall Len 2.1260 54.00MM
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Length Of Cut 0.3940 10.01MM
Flutes/Inserts 4
Tool Material Steel
Cutting & Machining Properties
Insert Style XN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
