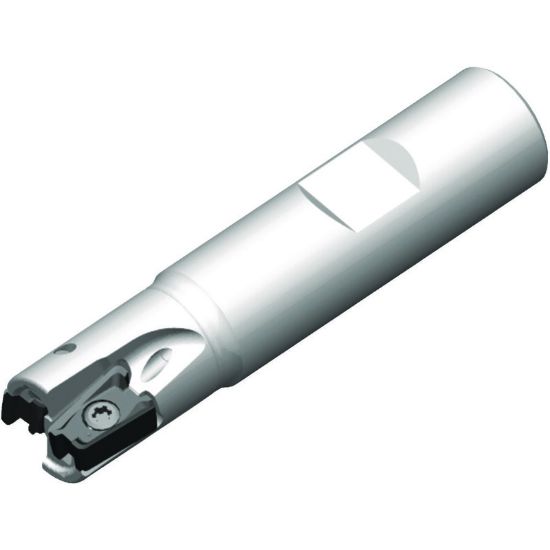

Picture of WIDIA/KENNAMETAL VSM490D025Z03B25XN10 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL VSM490D025Z03B25XN10 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

ANSI: VSM490D025Z03B25XN10

ISO: VSM490D025Z03B25XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425572
Delivery date: 3-5 days
$378.33

Features And Benefits

True 90° roughing tool with embedded finishing capabilities all in one tool. Best-in-class wall finish in axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Reduced shanks available.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Overall Len 3.5040 89.00MM
Dimension Description 0.984 x 0.984 x 0.394 x 3.504
Flutes/Inserts 3
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Length Of Cut 0.3940 10.01MM
Insert Size Ic 10
Tool Material Steel
Cutting & Machining Properties
Insert Style XN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
