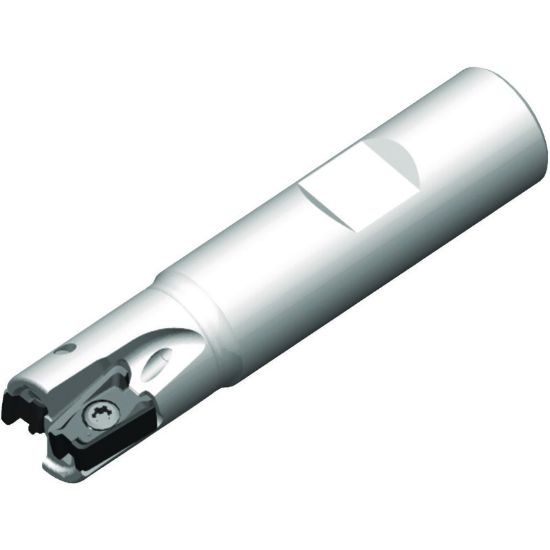

Picture of WIDIA/KENNAMETAL VSM490D025Z03B20XN10 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL VSM490D025Z03B20XN10 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.787

ANSI: VSM490D025Z03B20XN10

ISO: VSM490D025Z03B20XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425571
Delivery date: 3-5 days
$378.33

Features And Benefits

True 90° roughing tool with embedded finishing capabilities all in one tool. Best-in-class wall finish in axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Reduced shanks available.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Pocket Milling, Side Milling, Ramp Milling, Slot Milling, Face Milling
Shipping State Pennsylvania
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Length Of Cut 0.3940 10.01MM
Dimension Description 0.984 x 0.787 x 0.394 x 3.110
Tool Material Steel
Machine Side Connection Size 0.7874 20.00MM
Insert Size Ic 10
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 3.1100 78.99MM
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
