  • WIDIA/KENNAMETAL VSM490D025Z03A20XN10L100 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.787

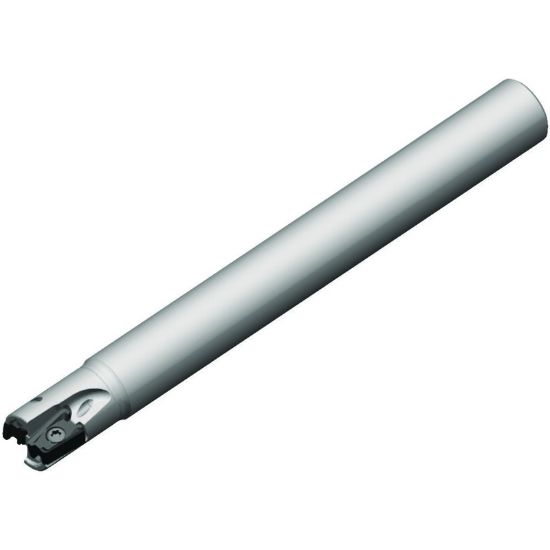

Picture of WIDIA/KENNAMETAL VSM490D025Z03A20XN10L100 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL VSM490D025Z03A20XN10L100 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.787

ANSI: VSM490D025Z03A20XN10L100

ISO: VSM490D025Z03A20XN10L100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425509
Delivery date: 3-5 days
$378.33

Features And Benefits

True 90° roughing tool with embedded finishing capabilities all in one tool. Best-in-class wall finish in axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Reduced shanks and long versions available.

Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Shipping State Pennsylvania
Package Size 1
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Dimension Description 0.984 x 0.787 x 0.394 x 3.937
Tool Material Steel
Overall Len 3.9370 100.00MM
Flutes/Inserts 3
Length Of Cut 0.3940 10.01MM
Insert Size Ic 10
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.7874 20.00MM
Machine Side Connection Size 0.7874 20.00MM
Cutting & Machining Properties
Insert Style XN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
