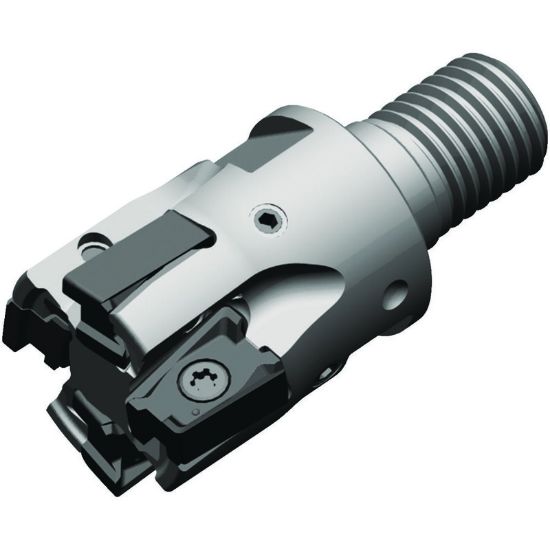

Picture of WIDIA/KENNAMETAL VSM490D025Z02M12XN15 90.0° Milling Cutter 0.984 Cutter Diameter Screw On M12

WIDIA/KENNAMETAL VSM490D025Z02M12XN15 90.0° Milling Cutter 0.984 Cutter Diameter Screw On M12

ANSI: VSM490D025Z02M12XN15

ISO: VSM490D025Z02M12XN15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5873211
Delivery date: 3-5 days
$299.92

Features And Benefits

Superior wall and surface finish capabilities. "Stepless” solution. True 90° to run precise applications in multiple axial passes. Strong concept to run up to 15mm (.590) depth of cut. Effective internal coolant feature, reaching the cutting edge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Application Side Milling, Face Milling
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Pennsylvania
Dimensional Specifications
Flutes/Inserts 2
Overall Len 2.1260 54.00MM
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cutter Dia 0.9840 24.99MM
Length Of Cut 0.5910 15.01MM
Insert Size Ic 15
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Insert Style XN
