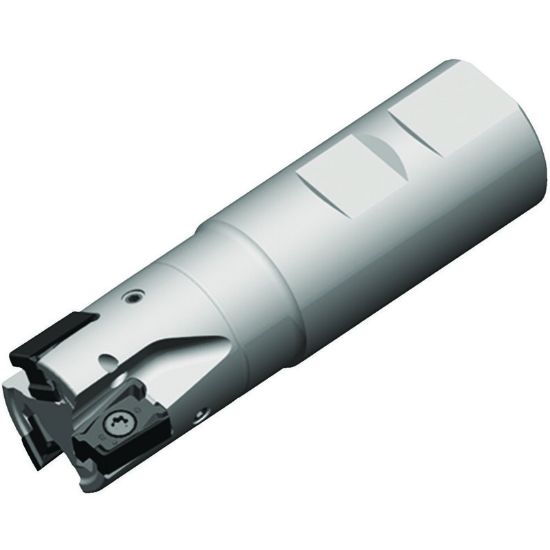

Picture of WIDIA/KENNAMETAL VSM490D025Z02B25XN15 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL VSM490D025Z02B25XN15 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

ANSI: VSM490D025Z02B25XN15

ISO: VSM490D025Z02B25XN15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5710285
Delivery date: 3-5 days
$351.76

Features And Benefits

Superior wall and surface finish capabilities. “Stepless” solution. True 90° to run preciseapplications in multiple axial passes. Strong concept to run up to 15mm (.590) depth of cut. Effective internal coolant feature, reaching the cuttingedge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling, Side Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 15
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Overall Len 3.5000 88.90MM
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Flutes/Inserts 2
Length Of Cut 0.5910 15.01MM
Dimension Description 0.984 x 0.984 x 0.591 x 3.500
Tool Material Steel
Cutting & Machining Properties
Insert Style XN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
