  • WIDIA/KENNAMETAL VSM490D025Z02A25XN15L170 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

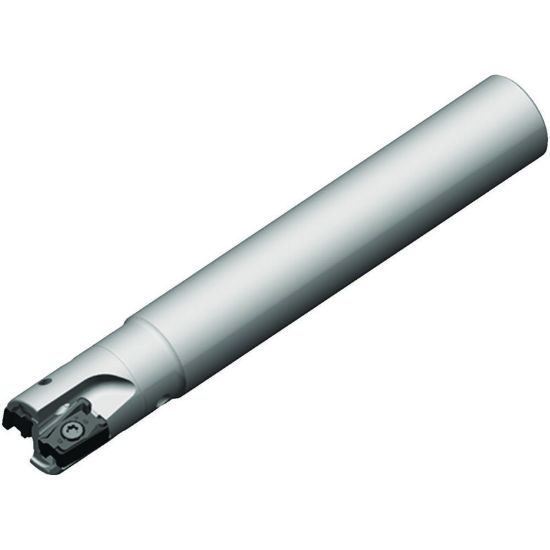

Picture of WIDIA/KENNAMETAL VSM490D025Z02A25XN15L170 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL VSM490D025Z02A25XN15L170 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

ANSI: VSM490D025Z02A25XN15L170

ISO: VSM490D025Z02A25XN15L170

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5710287
Delivery date: 3-5 days
$366.07

Features And Benefits

Superior wall and surface finish capabilities. “Stepless” solution. True 90° to run preciseapplications in multiple axial passes. Strong concept to run up to 15mm (.590) depth of cut. Effective internal coolant feature, reaching the cutting edge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Shipping State Pennsylvania
Application Face Milling, Side Milling
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Length Of Cut 0.5910 15.01MM
Dimension Description 0.984 x 0.984 x 0.591 x 6.693
Overall Len 6.6930 170.00MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Insert Size Ic 15
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
