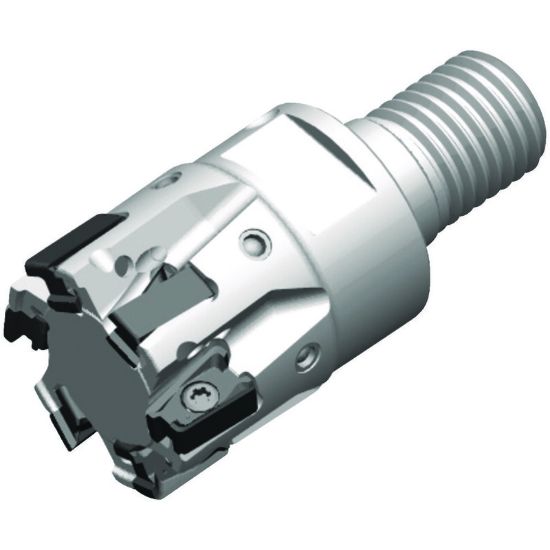

Picture of WIDIA/KENNAMETAL VSM490D020Z03M10XN10 90.0° Milling Cutter 0.787 Cutter Diameter Screw On M10

WIDIA/KENNAMETAL VSM490D020Z03M10XN10 90.0° Milling Cutter 0.787 Cutter Diameter Screw On M10

ANSI: VSM490D020Z03M10XN10

ISO: VSM490D020Z03M10XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425554
Delivery date: 3-5 days
$298.21

Features And Benefits

True 90° roughing tool with embedded finishing capabilities all in one tool. Best-in-class wall finish in axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. D32 productivity booster with Z6 effective for HPC cutting.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Insert Application Semi Finishing, Roughing
Application Side Milling, Ramp Milling, Slot Milling, Face Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Flutes/Inserts 3
Machine Side Connection Size M10
Cutter Dia 0.7870 19.99MM
Machine Side Connection Type Screw On
Length Of Cut 0.3940 10.01MM
Overall Len 1.8900 48.01MM
Insert Size Ic 10
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
