  • WIDIA/KENNAMETAL VSM490D020Z03A20XN10L150 90.0° Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

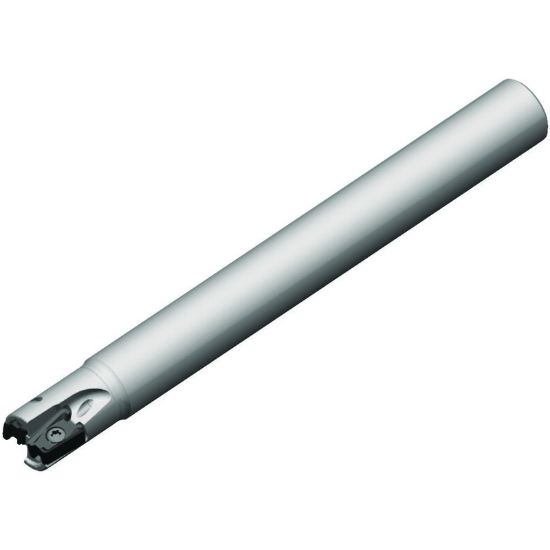

Picture of WIDIA/KENNAMETAL VSM490D020Z03A20XN10L150 90.0° Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL VSM490D020Z03A20XN10L150 90.0° Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

ANSI: VSM490D020Z03A20XN10L150

ISO: VSM490D020Z03A20XN10L150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425507
Delivery date: 3-5 days
$368.59

Features And Benefits

True 90° roughing tool with embedded finishing capabilities all in one tool. Best-in-class wall finish in axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Reduced shanks and long versions available.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Machine Side Connection Type Cylindrical
Length Of Cut 0.3940 10.01MM
Cutter Dia 0.7870 19.99MM
Overall Len 5.9060 150.01MM
Dimension Description 0.787 x 0.787 x 0.394 x 5.906
Insert Size Ic 10
Flutes/Inserts 3
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Insert Style XN
Hand R/L Right
