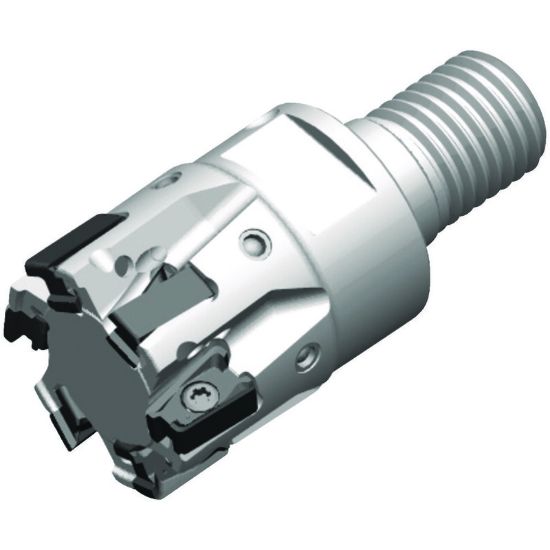

Picture of WIDIA/KENNAMETAL VSM490D016Z02M08XN10 90.0° Milling Cutter 0.630 Cutter Diameter Screw On M08

WIDIA/KENNAMETAL VSM490D016Z02M08XN10 90.0° Milling Cutter 0.630 Cutter Diameter Screw On M08

ANSI: VSM490D016Z02M08XN10

ISO: VSM490D016Z02M08XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425553
Delivery date: 3-5 days
$234.65

Features And Benefits

True 90° roughing tool with embedded finishing capabilities all in one tool. Best-in-class wall finish in axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. D32 productivity booster with Z6 effective for HPC cutting.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Insert Type Negative
Made In USA No
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Type Screw On
Length Of Cut 0.3940 10.01MM
Overall Len 1.6810 42.70MM
Machine Side Connection Size M08
Insert Size Ic 10
Cutter Dia 0.6300 16.00MM
Flutes/Inserts 2
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
Insert Style XN
