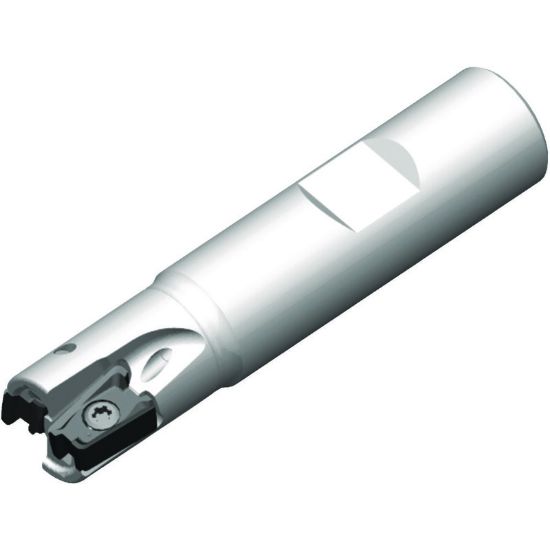

Picture of WIDIA/KENNAMETAL VSM490D016Z02B16XN10 90.0° Milling Cutter 0.630 Cutter Diameter Cylindrical 0.629

WIDIA/KENNAMETAL VSM490D016Z02B16XN10 90.0° Milling Cutter 0.630 Cutter Diameter Cylindrical 0.629

ANSI: VSM490D016Z02B16XN10

ISO: VSM490D016Z02B16XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425558
Delivery date: 3-5 days
$275.87

Features And Benefits

True 90° roughing tool with embedded finishing capabilities all in one tool. Best-in-class wall finish in axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Reduced shanks available.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Side Milling, Ramp Milling, Slot Milling
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 10
Tool Material Steel
Overall Len 2.9130 73.99MM
Cutter Dia 0.6300 16.00MM
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Length Of Cut 0.3940 10.01MM
Machine Side Connection Size 0.6299 16.00MM
Dimension Description 0.630 x 0.630 x 0.394 x 2.913
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
Insert Style XN
