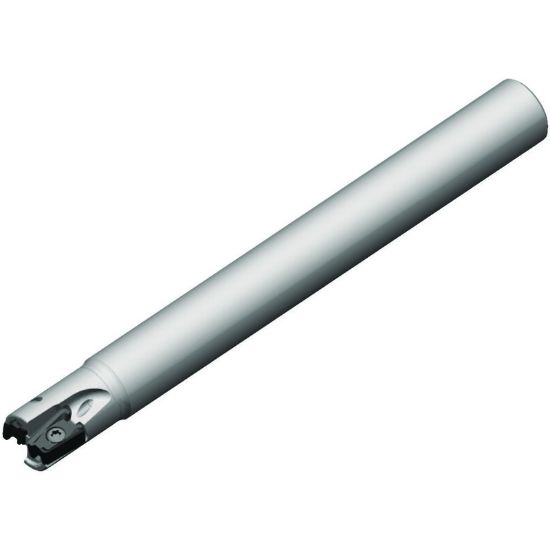

Picture of WIDIA/KENNAMETAL VSM490D016Z02A16XN10L090 90.0° Milling Cutter 0.630 Cutter Diameter Cylindrical 0.629

WIDIA/KENNAMETAL VSM490D016Z02A16XN10L090 90.0° Milling Cutter 0.630 Cutter Diameter Cylindrical 0.629

ANSI: VSM490D016Z02A16XN10L090

ISO: VSM490D016Z02A16XN10L090

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425502
Delivery date: 3-5 days
$275.87

Features And Benefits

True 90° roughing tool with embedded finishing capabilities all in one tool. Best-in-class wall finish in axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Reduced shanks and long versions available.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Made In USA No
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Overall Len 3.5430 89.99MM
Dimension Description 0.630 x 0.630 x 0.394 x 3.543
Cutter Dia 0.6300 16.00MM
Flutes/Inserts 2
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Machine Side Connection Type Cylindrical
Length Of Cut 0.3940 10.01MM
Insert Size Ic 10
Tool Material Steel
Cutting & Machining Properties
Insert Style XN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
