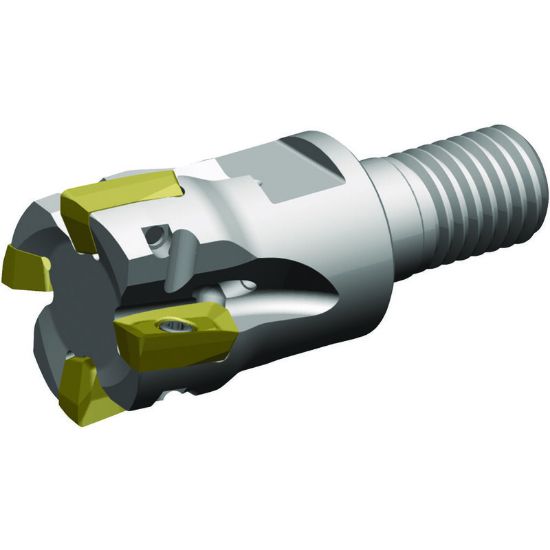

Picture of WIDIA/KENNAMETAL VSM17D150Z04M16XD17 90.0° Milling Cutter 1.500 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL VSM17D150Z04M16XD17 90.0° Milling Cutter 1.500 Cutter Diameter Screw On M16

ANSI: VSM17D150Z04M16XD17

ISO: VSM17D150Z04M16XD17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5988019
Delivery date: 3-5 days
$359.32

Features And Benefits

True 0° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Slot Milling, Face Milling
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Type Screw On
Tool Material Steel
Machine Side Connection Size M16
Flutes/Inserts 4
Insert Size Ic 17
Overall Len 2.4680 62.69MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Length Of Cut 0.6380 16.21MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Insert Style XD
Hand R/L Right
