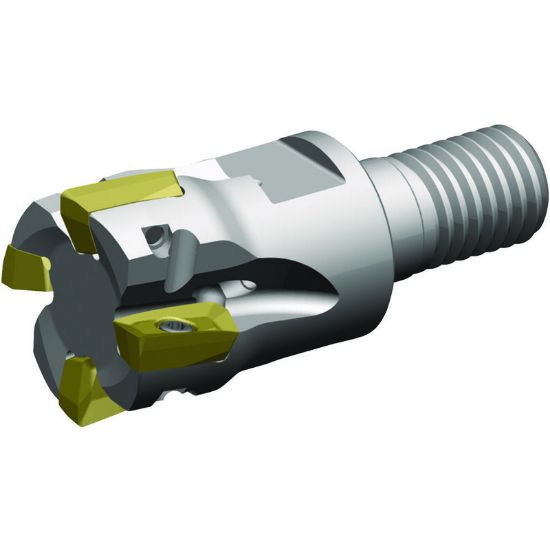

Picture of WIDIA/KENNAMETAL VSM17D150Z03M16XD17 90.0° Milling Cutter 1.500 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL VSM17D150Z03M16XD17 90.0° Milling Cutter 1.500 Cutter Diameter Screw On M16

ANSI: VSM17D150Z03M16XD17

ISO: VSM17D150Z03M16XD17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5988045
Delivery date: 3-5 days
$341.35

Features And Benefits

True 0° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert/Tool Tool
Package Size 1
Shipping State Pennsylvania
Made In USA No
Dimensional Specifications
Cutter Dia 1.5000 38.10MM - 1-1/2
Length Of Cut 0.6380 16.21MM
Insert Size Ic 17
Machine Side Connection Size M16
Overall Len 2.4680 62.69MM
Tool Material Steel
Machine Side Connection Type Screw On
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
