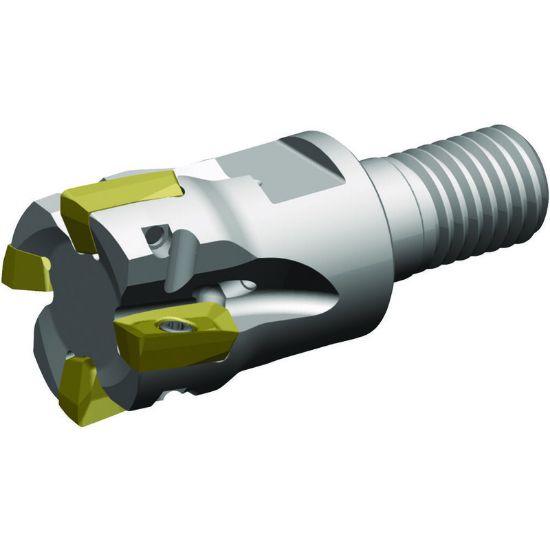

Picture of WIDIA/KENNAMETAL VSM17D125Z03M16XD17 90.0° Milling Cutter 1.250 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL VSM17D125Z03M16XD17 90.0° Milling Cutter 1.250 Cutter Diameter Screw On M16

ANSI: VSM17D125Z03M16XD17

ISO: VSM17D125Z03M16XD17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5988018
Delivery date: 3-5 days
$332.20

Features And Benefits

True 0° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Positive
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Size M16
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Screw On
Insert Size Ic 17
Overall Len 2.4680 62.69MM
Flutes/Inserts 3
Tool Material Steel
Length Of Cut 0.6410 16.28MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Insert Style XD
Hand R/L Right
