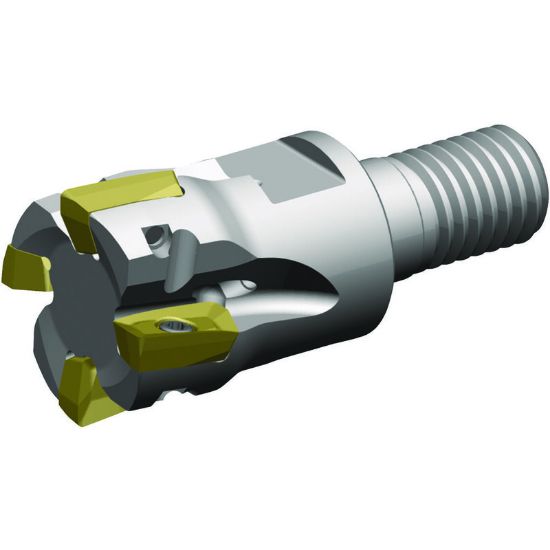

Picture of WIDIA/KENNAMETAL VSM17D100Z02M12XD17 90.0° Milling Cutter 1.000 Cutter Diameter Screw On M12

WIDIA/KENNAMETAL VSM17D100Z02M12XD17 90.0° Milling Cutter 1.000 Cutter Diameter Screw On M12

ANSI: VSM17D100Z02M12XD17

ISO: VSM17D100Z02M12XD17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5988017
Delivery date: 3-5 days
$305.08

Features And Benefits

True 0° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Application Ramp Milling, Slot Milling, Side Milling, Face Milling, Pocket Milling
Insert Type Positive
Made In USA No
Dimensional Specifications
Overall Len 2.1160 53.75MM
Flutes/Inserts 2
Tool Material Steel
Insert Size Ic 17
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Length Of Cut 0.6420 16.31MM
Cutter Dia 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
