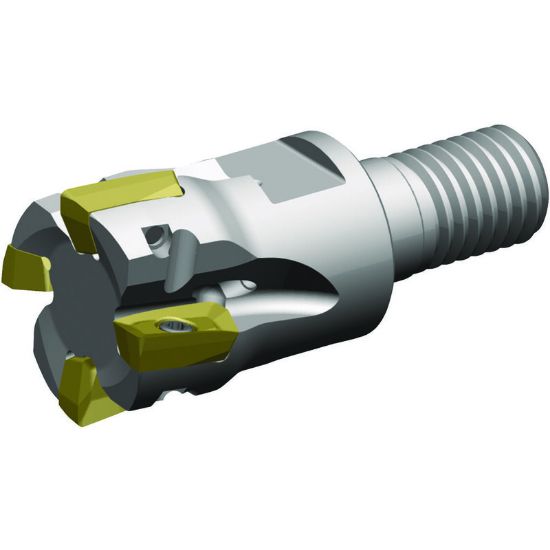

Picture of WIDIA/KENNAMETAL VSM17D040Z04M16XD17 90.0° Milling Cutter 1.575 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL VSM17D040Z04M16XD17 90.0° Milling Cutter 1.575 Cutter Diameter Screw On M16

ANSI: VSM17D040Z04M16XD17

ISO: VSM17D040Z04M16XD17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5988093
Delivery date: 3-5 days
$359.32

Features And Benefits

True 90° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Flutes/Inserts 4
Length Of Cut 0.6380 16.21MM
Machine Side Connection Size M16
Machine Side Connection Type Screw On
Overall Len 2.5390 64.49MM
Insert Size Ic 17
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Style XD
Hand R/L Right
Insert Shape/Cutter Pocket Shape Other
