  • WIDIA/KENNAMETAL VSM17D040Z04A32XD17L130 90.0° Milling Cutter 1.575 Cutter Diameter Cylindrical 1.259

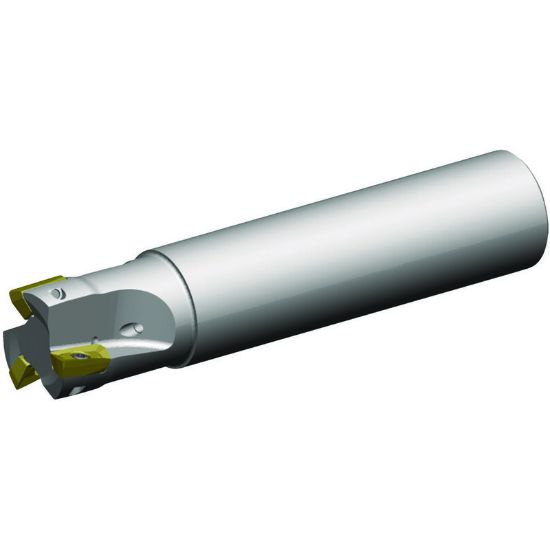

Picture of WIDIA/KENNAMETAL VSM17D040Z04A32XD17L130 90.0° Milling Cutter 1.575 Cutter Diameter Cylindrical 1.259

WIDIA/KENNAMETAL VSM17D040Z04A32XD17L130 90.0° Milling Cutter 1.575 Cutter Diameter Cylindrical 1.259

ANSI: VSM17D040Z04A32XD17L130

ISO: VSM17D040Z04A32XD17L130

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5988059
Delivery date: 3-5 days
$412.67

Features And Benefits

True 90° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Face Milling, Slot Milling
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Dimension Description 1.575 x 1.260 x 0.638 x 5.118
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Overall Len 5.1180 130.00MM
Flutes/Inserts 4
Insert Size Ic 17
Machine Side Connection Type Cylindrical
Length Of Cut 0.6380 16.21MM
Shank/Pilot Dia 1.2598 32.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
Coolant Thru Yes
