  • WIDIA/KENNAMETAL VSM17D040Z03A32XD17L250 90.0° Milling Cutter 1.575 Cutter Diameter Cylindrical 1.259

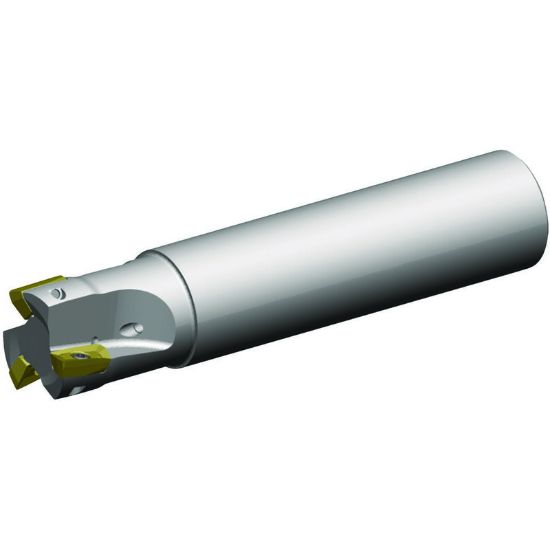

Picture of WIDIA/KENNAMETAL VSM17D040Z03A32XD17L250 90.0° Milling Cutter 1.575 Cutter Diameter Cylindrical 1.259

WIDIA/KENNAMETAL VSM17D040Z03A32XD17L250 90.0° Milling Cutter 1.575 Cutter Diameter Cylindrical 1.259

ANSI: VSM17D040Z03A32XD17L250

ISO: VSM17D040Z03A32XD17L250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5988110
Delivery date: 3-5 days
$403.24

Features And Benefits

True 90° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Made In USA No
Insert Type Positive
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Dimension Description 1.575 x 1.260 x 0.638 x 9.843
Cutter Dia 1.5750 40.01MM
Machine Side Connection Size 1.2598 32.00MM
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 3
Overall Len 9.8430 250.01MM
Insert Size Ic 17
Machine Side Connection Type Cylindrical
Length Of Cut 0.6380 16.21MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
