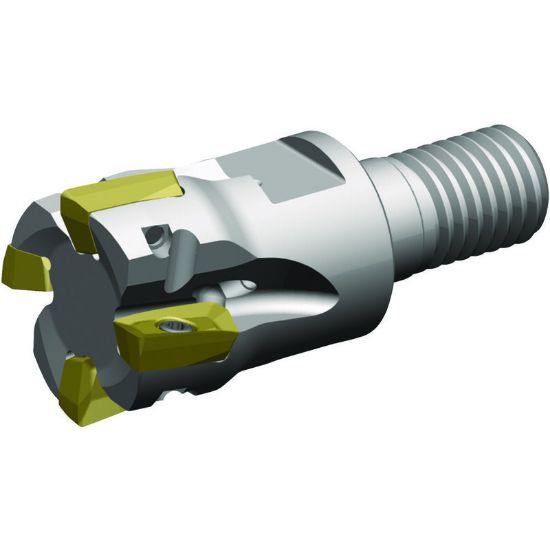

Picture of WIDIA/KENNAMETAL VSM17D032Z03M16XD17 90.0° Milling Cutter 1.260 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL VSM17D032Z03M16XD17 90.0° Milling Cutter 1.260 Cutter Diameter Screw On M16

ANSI: VSM17D032Z03M16XD17

ISO: VSM17D032Z03M16XD17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5988092
Delivery date: 3-5 days
$332.20

Features And Benefits

True 90° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Made In USA No
Dimensional Specifications
Length Of Cut 0.6410 16.28MM
Overall Len 2.5390 64.49MM
Flutes/Inserts 3
Machine Side Connection Type Screw On
Tool Material Steel
Insert Size Ic 17
Cutter Dia 1.2600 32.00MM
Machine Side Connection Size M16
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
Coolant Thru Yes
