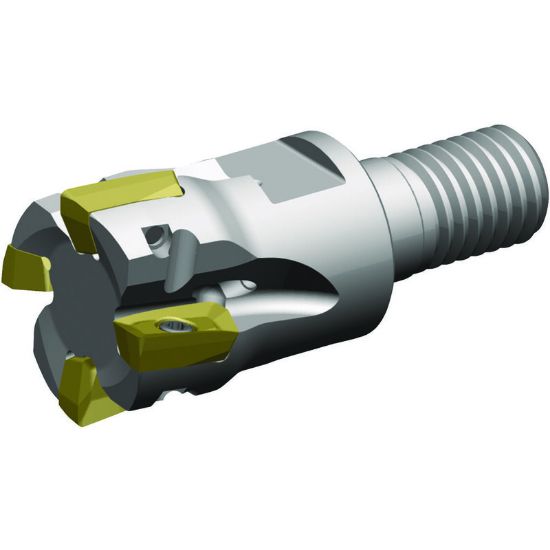

Picture of WIDIA/KENNAMETAL VSM17D025Z02M12XD17 90.0° Milling Cutter 0.984 Cutter Diameter Screw On M12

WIDIA/KENNAMETAL VSM17D025Z02M12XD17 90.0° Milling Cutter 0.984 Cutter Diameter Screw On M12

ANSI: VSM17D025Z02M12XD17

ISO: VSM17D025Z02M12XD17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5988091
Delivery date: 3-5 days
$305.08

Features And Benefits

True 90° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Side Milling, Ramp Milling, Slot Milling
Package Size 1
Made In USA No
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Dimensional Specifications
Overall Len 2.2440 57.00MM
Flutes/Inserts 2
Tool Material Steel
Cutter Dia 0.9840 24.99MM
Length Of Cut 0.6470 16.43MM
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Insert Size Ic 17
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
Coolant Thru Yes
