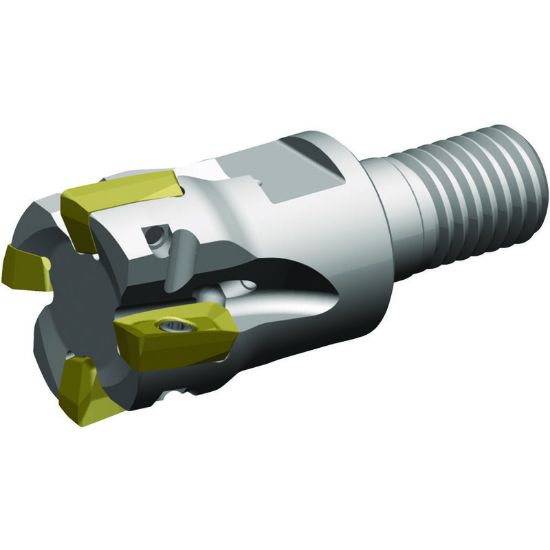

Picture of WIDIA/KENNAMETAL VSM11D150Z06M16XD11 90.0° Milling Cutter 1.500 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL VSM11D150Z06M16XD11 90.0° Milling Cutter 1.500 Cutter Diameter Screw On M16

ANSI: VSM11D150Z06M16XD11

ISO: VSM11D150Z06M16XD11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5416993
Delivery date: 3-5 days
$354.77

Features And Benefits

True 90° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Made In USA No
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 11
Machine Side Connection Type Screw On
Machine Side Connection Size M16
Overall Len 2.4680 62.69MM
Length Of Cut 0.4490 11.40MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 6
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
Coolant Thru Yes
