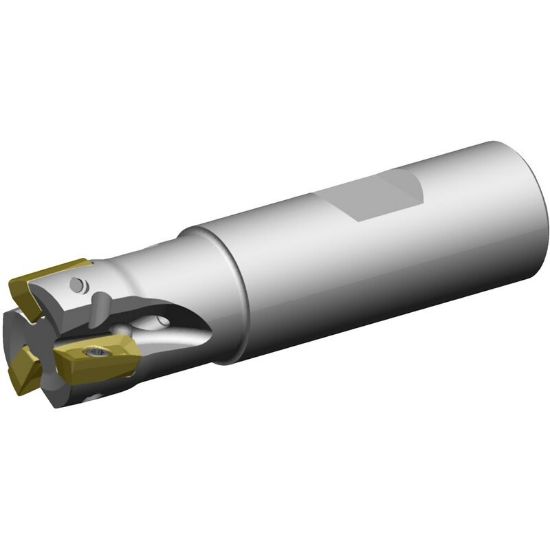

Picture of WIDIA/KENNAMETAL VSM11D125Z05W125XD11 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

WIDIA/KENNAMETAL VSM11D125Z05W125XD11 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

ANSI: VSM11D125Z05W125XD11

ISO: VSM11D125Z05W125XD11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5416452
Delivery date: 3-5 days
$312.68

Features And Benefits

True 90° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Ramp Milling, Side Milling, Slot Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA No
Dimensional Specifications
Overall Len 4.0000 101.60MM
Insert Size Ic 11
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Dimension Description 1.250 x 1.250 x 0.451 x 4.000
Tool Material Steel
Flutes/Inserts 5
Length Of Cut 0.4510 11.46MM
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
Coolant Thru Yes
