  • WIDIA/KENNAMETAL VSM11D125Z05C125XD11L520 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

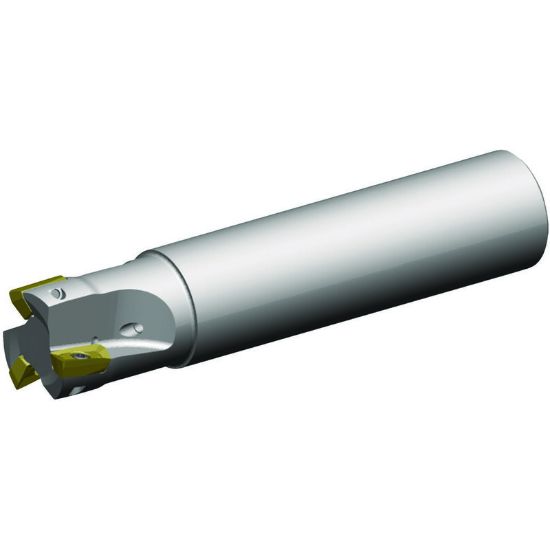

Picture of WIDIA/KENNAMETAL VSM11D125Z05C125XD11L520 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

WIDIA/KENNAMETAL VSM11D125Z05C125XD11L520 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

ANSI: VSM11D125Z05C125XD11L520

ISO: VSM11D125Z05C125XD11L520

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5416522
Delivery date: 3-5 days
$312.68

Features And Benefits

True 90° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Dimension Description 1.250 x 1.250 x 0.451 x 5.200
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 5.2000 132.08MM
Insert Size Ic 11
Tool Material Steel
Flutes/Inserts 5
Length Of Cut 0.4510 11.46MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
