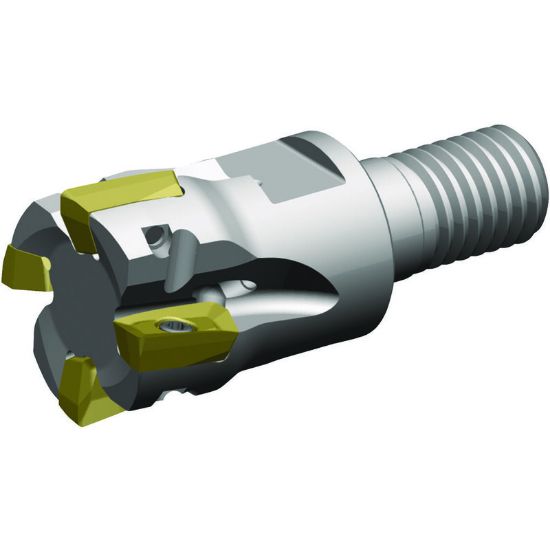

Picture of WIDIA/KENNAMETAL VSM11D125Z04M16XD11 90.0° Milling Cutter 1.250 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL VSM11D125Z04M16XD11 90.0° Milling Cutter 1.250 Cutter Diameter Screw On M16

ANSI: VSM11D125Z04M16XD11

ISO: VSM11D125Z04M16XD11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5416992
Delivery date: 3-5 days
$288.61

Features And Benefits

True 0° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Screw On
Tool Material Steel
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size M16
Overall Len 2.4680 62.69MM
Flutes/Inserts 4
Insert Size Ic 11
Length Of Cut 0.4510 11.46MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
Coolant Thru Yes
