  • WIDIA/KENNAMETAL VSM11D125Z03C125XD11L980 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

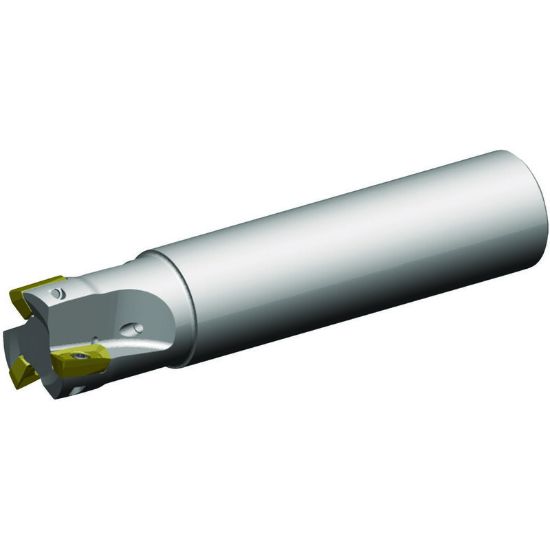

Picture of WIDIA/KENNAMETAL VSM11D125Z03C125XD11L980 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

WIDIA/KENNAMETAL VSM11D125Z03C125XD11L980 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

ANSI: VSM11D125Z03C125XD11L980

ISO: VSM11D125Z03C125XD11L980

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5416750
Delivery date: 3-5 days
$312.68

Features And Benefits

True 0° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Package Size 1
Application Pocket Milling, Face Milling, Side Milling, Ramp Milling, Slot Milling
Made In USA No
Insert Type Positive
Dimensional Specifications
Tool Material Steel
Length Of Cut 0.4510 11.46MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.2500 31.75MM
Overall Len 9.8000 248.92MM
Insert Size Ic 11
Dimension Description 1.250 x 1.250 x 0.451 x 9.800
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
Coolant Thru Yes
