  • WIDIA/KENNAMETAL VSM11D100Z03C100XD11L480 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

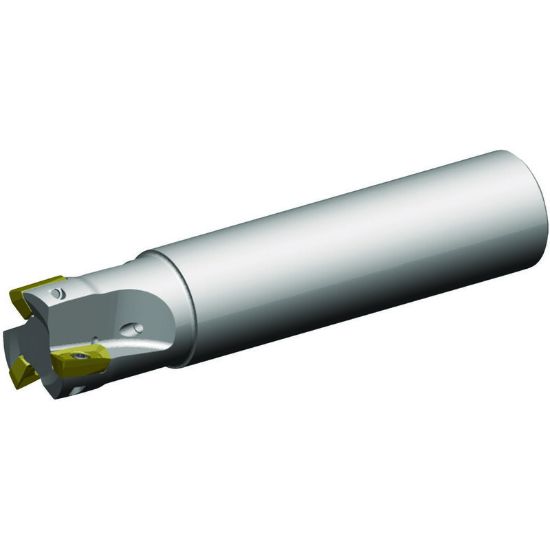

Picture of WIDIA/KENNAMETAL VSM11D100Z03C100XD11L480 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

WIDIA/KENNAMETAL VSM11D100Z03C100XD11L480 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

ANSI: VSM11D100Z03C100XD11L480

ISO: VSM11D100Z03C100XD11L480

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5416489
Delivery date: 3-5 days
$288.61

Features And Benefits

True 0° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Dimension Description 1.000 x 1.000 x 0.453 x 4.800
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 11
Overall Len 4.8000 121.92MM
Flutes/Inserts 3
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Length Of Cut 0.4530 11.51MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Insert Style XD
Hand R/L Right
