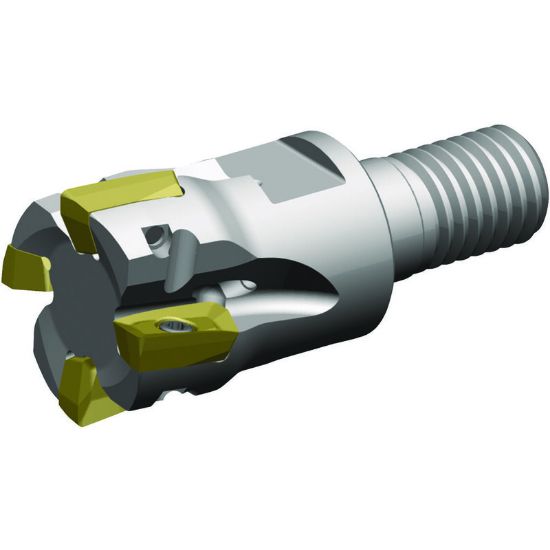

Picture of WIDIA/KENNAMETAL VSM11D075Z03M10XD11 90.0° Milling Cutter 0.750 Cutter Diameter Screw On M10

WIDIA/KENNAMETAL VSM11D075Z03M10XD11 90.0° Milling Cutter 0.750 Cutter Diameter Screw On M10

ANSI: VSM11D075Z03M10XD11

ISO: VSM11D075Z03M10XD11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5416990
Delivery date: 3-5 days
$246.53

Features And Benefits

True 0° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Made In USA No
Insert Type Positive
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size M10
Overall Len 1.8870 47.93MM
Flutes/Inserts 3
Length Of Cut 0.4550 11.56MM
Machine Side Connection Type Screw On
Insert Size Ic 11
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
Coolant Thru Yes
