  • WIDIA/KENNAMETAL VSM11D075Z03C075XD11L670 90.0° Milling Cutter 0.750 Cutter Diameter Cylindrical 0.750

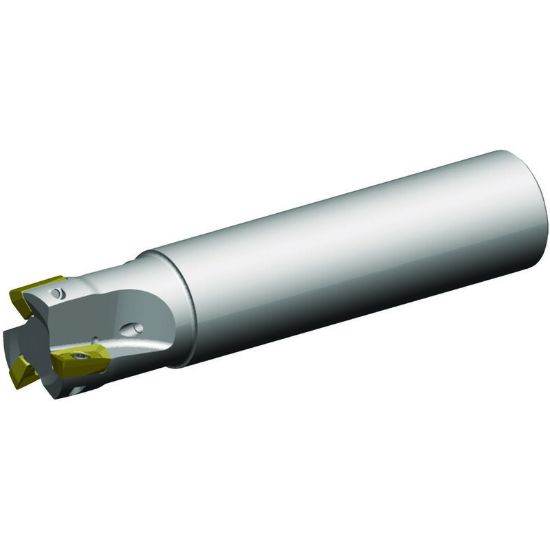

Picture of WIDIA/KENNAMETAL VSM11D075Z03C075XD11L670 90.0° Milling Cutter 0.750 Cutter Diameter Cylindrical 0.750

WIDIA/KENNAMETAL VSM11D075Z03C075XD11L670 90.0° Milling Cutter 0.750 Cutter Diameter Cylindrical 0.750

ANSI: VSM11D075Z03C075XD11L670

ISO: VSM11D075Z03C075XD11L670

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5416727
Delivery date: 3-5 days
$288.61

Features And Benefits

True 0° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Insert Size Ic 11
Cutter Dia 0.7500 19.05MM - 3/4
Overall Len 6.7000 170.18MM
Flutes/Inserts 3
Length Of Cut 0.4550 11.56MM
Machine Side Connection Type Cylindrical
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Dimension Description 0.750 x 0.750 x 0.455 x 6.700
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
