  • WIDIA/KENNAMETAL VSM11D075Z02C075XD11L450 90.0° Milling Cutter 0.750 Cutter Diameter Cylindrical 0.750

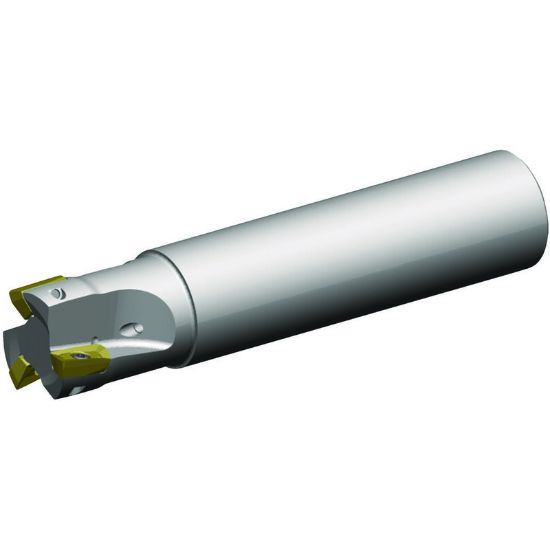

Picture of WIDIA/KENNAMETAL VSM11D075Z02C075XD11L450 90.0° Milling Cutter 0.750 Cutter Diameter Cylindrical 0.750

WIDIA/KENNAMETAL VSM11D075Z02C075XD11L450 90.0° Milling Cutter 0.750 Cutter Diameter Cylindrical 0.750

ANSI: VSM11D075Z02C075XD11L450

ISO: VSM11D075Z02C075XD11L450

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5416487
Delivery date: 3-5 days
$270.59

Features And Benefits

True 0° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Package Size 1
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Insert Type Positive
Made In USA No
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Cylindrical
Flutes/Inserts 2
Overall Len 4.5000 114.30MM
Length Of Cut 0.4550 11.56MM
Insert Size Ic 11
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Dimension Description 0.750 x 0.750 x 0.455 x 4.500
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
