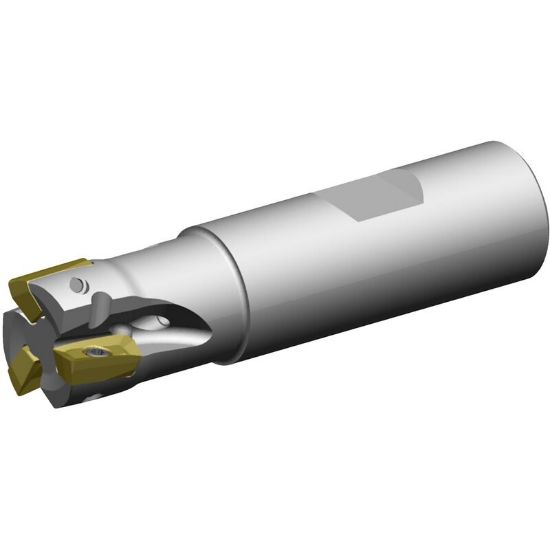

Picture of WIDIA/KENNAMETAL VSM11D062Z02W062XD11 90.0° Milling Cutter 0.625 Cutter Diameter Cylindrical 0.625

WIDIA/KENNAMETAL VSM11D062Z02W062XD11 90.0° Milling Cutter 0.625 Cutter Diameter Cylindrical 0.625

ANSI: VSM11D062Z02W062XD11

ISO: VSM11D062Z02W062XD11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5416416
Delivery date: 3-5 days
$258.56

Features And Benefits

True 0° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling, Side Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Positive
Shipping State Pennsylvania
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 2.7500 69.85MM
Flutes/Inserts 2
Length Of Cut 0.4540 11.53MM
Machine Side Connection Type Cylindrical
Insert Size Ic 11
Machine Side Connection Size 0.6250 15.88MM
Dimension Description 0.625 x 0.625 x 0.454 x 2.750
Cutter Dia 0.6250 15.88MM - 5/8
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
