  • WIDIA/KENNAMETAL VSM11D062Z02C062XD11L400 90.0° Milling Cutter 0.625 Cutter Diameter Cylindrical 0.625

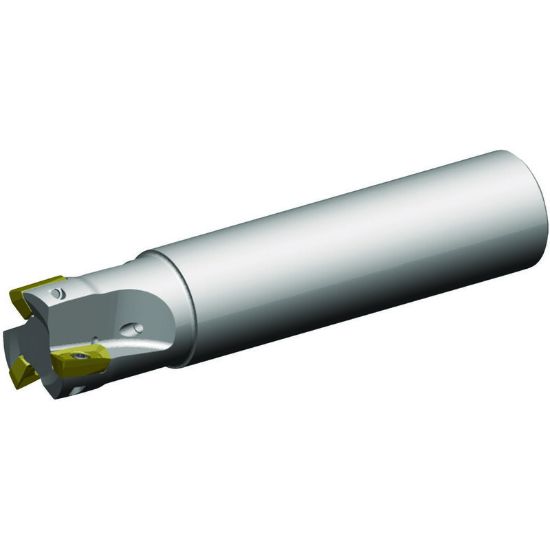

Picture of WIDIA/KENNAMETAL VSM11D062Z02C062XD11L400 90.0° Milling Cutter 0.625 Cutter Diameter Cylindrical 0.625

WIDIA/KENNAMETAL VSM11D062Z02C062XD11L400 90.0° Milling Cutter 0.625 Cutter Diameter Cylindrical 0.625

ANSI: VSM11D062Z02C062XD11L400

ISO: VSM11D062Z02C062XD11L400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5416486
Delivery date: 3-5 days
$258.56

Features And Benefits

True 0° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert/Tool Tool
Package Size 1
Shipping State Pennsylvania
Made In USA No
Dimensional Specifications
Dimension Description 0.625 x 0.625 x 0.454 x 4.000
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 11
Machine Side Connection Size 0.6250 15.88MM
Tool Material Steel
Length Of Cut 0.4540 11.53MM
Flutes/Inserts 2
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
