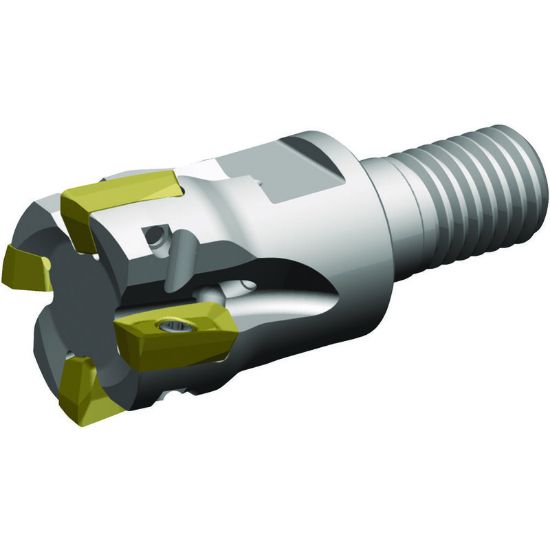

Picture of WIDIA/KENNAMETAL VSM11D040Z06M16XD11 90.0° Milling Cutter 1.570 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL VSM11D040Z06M16XD11 90.0° Milling Cutter 1.570 Cutter Diameter Screw On M16

ANSI: VSM11D040Z06M16XD11

ISO: VSM11D040Z06M16XD11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5417019
Delivery date: 3-5 days
$354.77
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Slot Milling, Face Milling, Pocket Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Size M16
Machine Side Connection Type Screw On
Length Of Cut 0.4480 11.38MM
Overall Len 2.5390 64.49MM
Insert Size Ic 11
Tool Material Steel
Cutter Dia 1.5700 39.88MM
Flutes/Inserts 6
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
