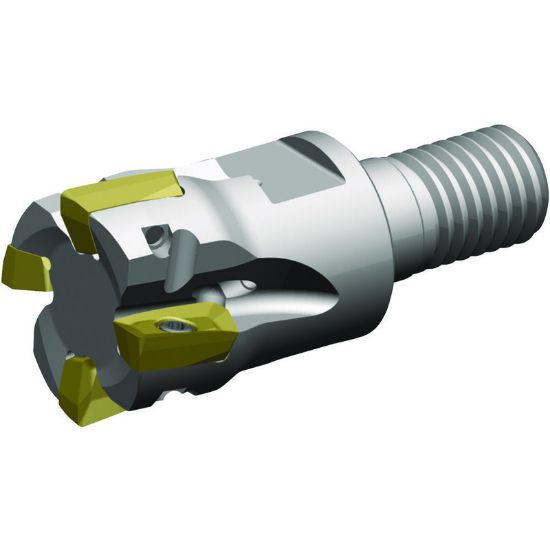

Picture of WIDIA/KENNAMETAL VSM11D025Z04M12XD11 90.0° Milling Cutter 0.980 Cutter Diameter Screw On M12

WIDIA/KENNAMETAL VSM11D025Z04M12XD11 90.0° Milling Cutter 0.980 Cutter Diameter Screw On M12

ANSI: VSM11D025Z04M12XD11

ISO: VSM11D025Z04M12XD11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5417015
Delivery date: 3-5 days
$276.60

Features And Benefits

True 90° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Made In USA No
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Positive
Shipping State Pennsylvania
Dimensional Specifications
Overall Len 2.1260 54.00MM
Flutes/Inserts 4
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cutter Dia 0.9800 24.89MM
Insert Size Ic 11
Tool Material Steel
Length Of Cut 0.4530 11.51MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
