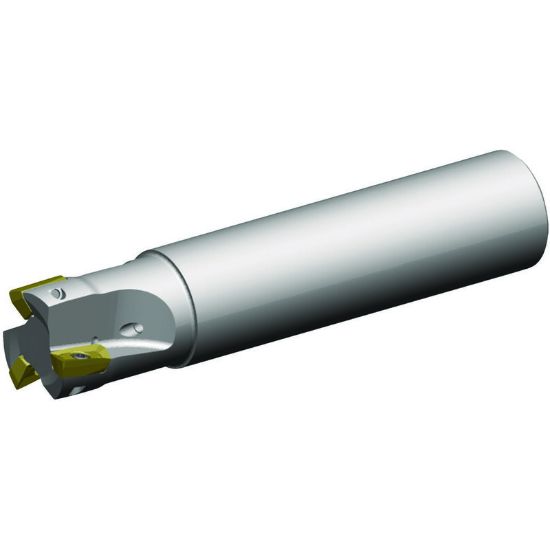

Picture of WIDIA/KENNAMETAL VSM11D022Z03A20XD11L170 90.0° Milling Cutter 0.860 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL VSM11D022Z03A20XD11L170 90.0° Milling Cutter 0.860 Cutter Diameter Cylindrical 0.787

ANSI: VSM11D022Z03A20XD11L170

ISO: VSM11D022Z03A20XD11L170

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5416704
Delivery date: 3-5 days
$294.64

Features And Benefits

True 90° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Slot Milling, Face Milling, Side Milling
Shipping State Pennsylvania
Made In USA No
Insert Type Positive
Insert Application Roughing, Semi Finishing
Package Size 1
Dimensional Specifications
Machine Side Connection Type Cylindrical
Tool Material Steel
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 6.6930 170.00MM
Flutes/Inserts 3
Length Of Cut 0.4540 11.53MM
Dimension Description 0.860 x 0.787 x 0.454 x 6.693
Insert Size Ic 11
Cutter Dia 0.8600 21.84MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
